High Quality Sand Big Bulk Bag Granular Auto Bulk Bag Unloader

बुनियादी जानकारी
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: EVERSUN
प्रमाणन: ISO, CE
मॉडल संख्या: टीडी
न्यूनतम आदेश मात्रा: 1 सेट
मूल्य: negotiable
पैकेजिंग विवरण: मानक निर्यात का मामला
प्रसव के समय: 7-15 कार्य दिवसों के भीतर
भुगतान शर्तें: एल/सी, डी/ए, वेस्टर्न यूनियन, मनीग्राम
आपूर्ति की क्षमता: 5000 सेट / वर्ष
विस्तार जानकारी
शोर स्तर: कम आवेदन: पाउडर, कण स्थानांतरण
नियंत्रण प्रणाली: पीएलसी/नियंत्रण बॉक्स क्षमता: 5-10 बैग/घंटा
रखरखाव: कम प्रोडक्ट का नाम: थोक बैग अनलोडर
डिज़ाइन: स्वनिर्धारित धूल संग्रहित करने वाला: हाँ

उत्पाद विवरण

Product Description:

The bulk bag unloader also called jumbo bag unloading station, Bulk Bagging Equipment, and jumbo bag discharge station, is used for unpacking and unloading ton-bag powder and granular materials, jumbo bag station is a system that takes into account the dismantling and feeding of bulk bag and jumbo bag. The combined feeding method can realize the simultaneous dismantling and unloading of main materials and auxiliary materials. The jumbo bag discharge station is mainly suitable for the dismantling of large bags of granular and powdery materials. Packing and unloading materials, such as feed, seeds, grain, chemical raw materials, condiments, pharmaceutical raw materials, etc.

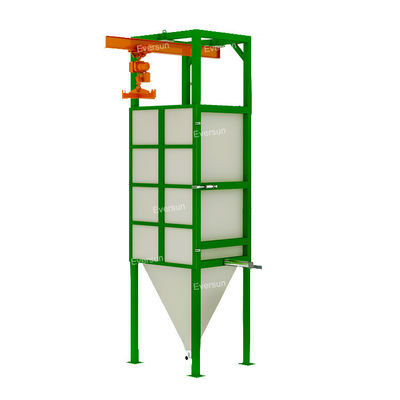

High Quality Sand Big Bulk Bag Granular Auto Bulk Bag Unloader 0


Product name Bulk bag unloader
Model TD
Capacity 5-10 Ton Bag/hour     50-100 Small Bag/hour
Pneumatic pressure

≥ 0.6 Mpa

Ton bag specifications Ton bag ≤ 1000*1000*1600
Lifting capacity 0-2T











1. The jumbo bag station is composed of a frame, lifting device, diaphragm valve, dust removal device, motor, discharge port, automatic beating device, etc.;

2. According to the process characteristics and equipment size, two different methods can be used: crane and forklift; jumbo bag loading can be equipped with double tracks, which can be used in the occasion where two electric hoists are installed to improve the efficiency of bag removal;

3. The material of big bag unloading system is divided into carbon steel and stainless steel;

4. The discharge port of big bag handling equipment is optional: rotary discharge valve, crusher, electromagnetic iron remover, vacuum feeding machines, and other equipment.


Configuration :

1. Main Structure: Equipment bracket; Electric hoist; Ton bag hanger; Bag clamping device; Crushing, beating, vibration, Transition buffer silo.


2. A weighing device can be installed in the unloading bin to weigh and measure the hopper.


3. Screening, drying, conveying, and packaging equipment can be connected to the big bag unloading station according to the actual situation.


4. Electromagnetic iron remover is optional to remove ferromagnetic impurities mixed in the material.


5. The inlet of the big bag emptying station can be connected to aperture valve, closing device.


High Quality Sand Big Bulk Bag Granular Auto Bulk Bag Unloader 1

Application case:

The jumbo bag unloader is essential equipment for multi-industry raw material feeding. Jumbo bag loading station can complete the integrated operation process of the unpacking, unloading, and conveying operations of the enterprise. At the same time, the jumbo bag unloading system can effectively suppress dust and improve the automation level, labor efficiency, and production environment of the enterprise. The lower-end pneumatic conveying device can be connected smoothly, and this jumbo bag handling equipment can also be placed directly above the reaction kettle, storage tank, and other equipment to achieve dust-free and easy feeding. If you want to know more about the application of jumbo bag dumping station in the production line, please contact us, and our professional engineers will answer your questions.



Support and Services:

 A Bulk bag unloader is a device manufactured by EVERSUN with model number TD. It is designed to safely contain, transport, and dump material from bags without the need for manual lifting or shoveling.

1.Q: Where is the Bag Dump Station made?
A: The
Bulk bag unloader is made in China by EVERSUN.

2. Q: How do Bulk bag unloader work?
Bulk bag unloader use a closed-loop system to safely contain and transport materials from bags into a process system. This is done by using an enclosed chamber, an auger to move material, and a dust collection system to minimize dusting.

3. Q: What materials can a Bulk bag unloader handle?
Bulk bag unloaders are designed to handle a variety of materials, including powders, granules, pellets, flakes, and other bulk materials.

4. Q: What is the capacity of a Bulk bag unloader?
A: The capacity of a
Bulk bag unloader will depend on the model and size. EVERSUN's TD model has a capacity of up to 5,000kg per hour.
