| उत्पत्ति के प्लेस: | चीन |
|---|---|
| ब्रांड नाम: | EVERSUN |
| प्रमाणन: | ISO,CE |
| मॉडल संख्या: | एड्स |
| न्यूनतम आदेश मात्रा: | 1 सेट |
| मूल्य: | विनिमय योग्य |
| पैकेजिंग विवरण: | मानक निर्यात लकड़ी के मामले |
| प्रसव के समय: | 7-15 कार्य दिवसों के भीतर |
| भुगतान शर्तें: | एल/सी, डी/ए, डी/पी, टी/टी/टी, मनीग्राम, वेस्टर्न यूनियन |
| आपूर्ति की क्षमता: | 5000set/वर्ष |
| रखरखाव: | कम | संवाद दूरी: | अनुकूलित |
|---|---|---|---|
| संरक्षा विशेषताएं: | धूल नियंत्रण तंत्र | अनुकूलन विकल्प: | उपलब्ध |
| फ़ायदा: | स्वचालन उच्च स्तर | आयाम: | अनुकूलित |
| वंचित प्रणाली: | हाँ | कस्टमज़ाइड सेवा: | सहायता |
| आवेदन: | थोक सामग्री हैंडलिंग, खाद्य प्रसंस्करण, रासायनिक प्रसंस्करण | सामग्री: | स्टेनलेस स्टील |
| मुख्य विशेषता: | धूल संग्रह में लाओ | विशेषता: | धूल रहित |
| नियंत्रण: | स्वीकृति | प्रयोग: | छोटे बैग का निर्वहन |
Product description

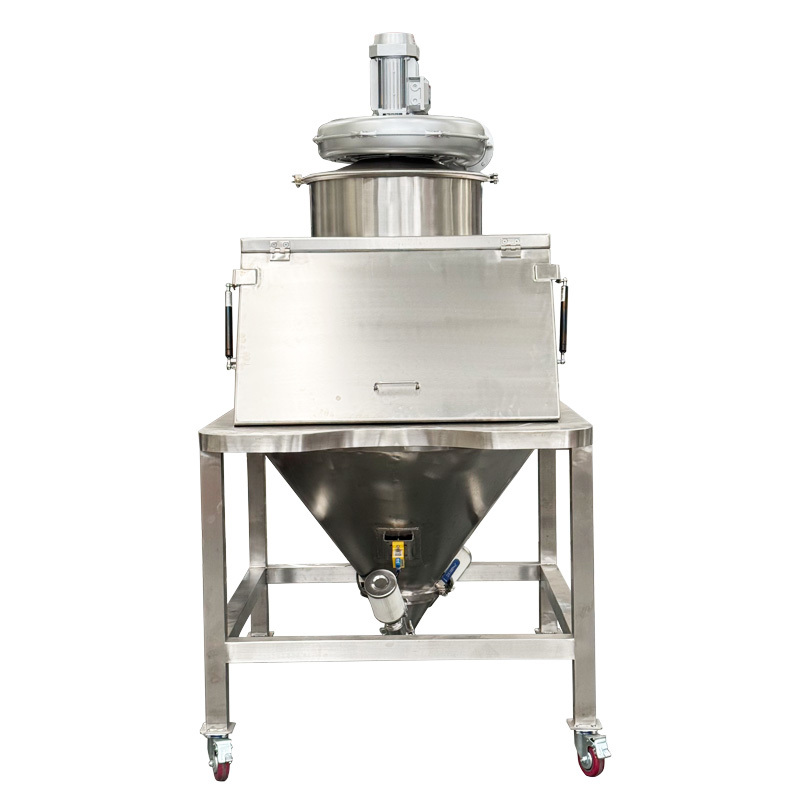

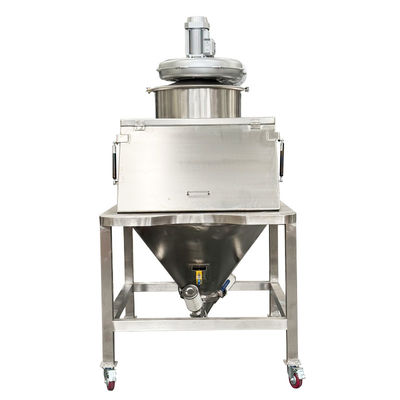

The dust-free feeding station is a specialized equipment used in industrial production to ensure the clean feeding of materials. It is suitable for powders, particles and other dust-prone materials. Through negative pressure suction and sealed chambers, it can prevent dust from escaping during feeding, thereby protecting the workshop environment and the health of personnel.
It can be compatible with various types of material bags such as ton bags and small bags, and has the functions of breaking the hopper and screening materials. It is widely used in industries with high cleanliness requirements such as food, medicine, and chemical industries, helping to produce products that meet environmental protection and hygiene standards.
Working principle
The dust-free feeding station operates based on the core principle of "sealing isolation + negative pressure suction": The sealed chamber is precisely aligned with the feeding port to prevent dust from spilling out;At the same time, it can prevent the blockage of the feeding port by vibration to break the arch, and also integrate the synchronous screening and debris removal function of the screen, which can be adapted to various material bags and help achieve clean feeding of dust-prone materials.
Features & Benefits
1. Highly effective dust prevention: Through a dual design of sealed chamber and negative pressure suction, it prevents dust from leaking from the source, ensuring the cleanliness of the workshop and the health of personnel.
2. Strong adaptability: It can be connected to various types of material bags such as ton bags and small bags, and is compatible with powdery and granular materials prone to dust. It is suitable for multiple industry scenarios.
3. Diverse functions: It comes with a break-arch device to prevent blockage and can be optionally equipped with a screening component for simultaneous impurity removal, balancing smooth feeding and material purification.
4. Easy operation and maintenance: The structure is simple, the feeding connection is convenient, and the filter bags and other components are easy to disassemble and clean, suitable for continuous production needs.
5. High compliance: It meets the strict hygiene and environmental protection standards of industries such as food and medicine, helping production comply with relevant regulations.
Product parameter
| Model | Feeding port diameter | Power of blower | Air pressure of blower |
| EDS-600 | 600mm/24inch | 1.5KW | 3Kpa-25m³/m |
| EDS-800 | 800mm/32inch | 1.5KW | 3Kpa-25m³/m |
| EDS-1000 | 1000mm/40inch | 2.2KW | 3.6Kpa-39m³/m |
| EDS-1200 | 1200mm/48inch | 2.2KW |
3.6Kpa-39m³/m |
Production line diagram
1. Workers feed powder into the dumping station
2. Vacuum conveyor transfer the powder to the mixer
3. Starting mixing
Detail display

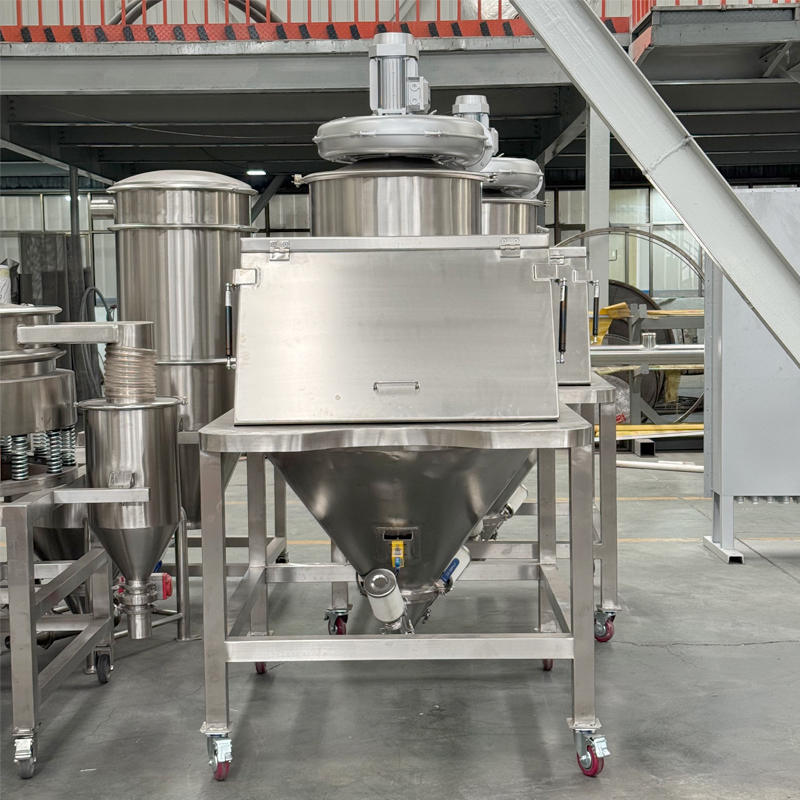

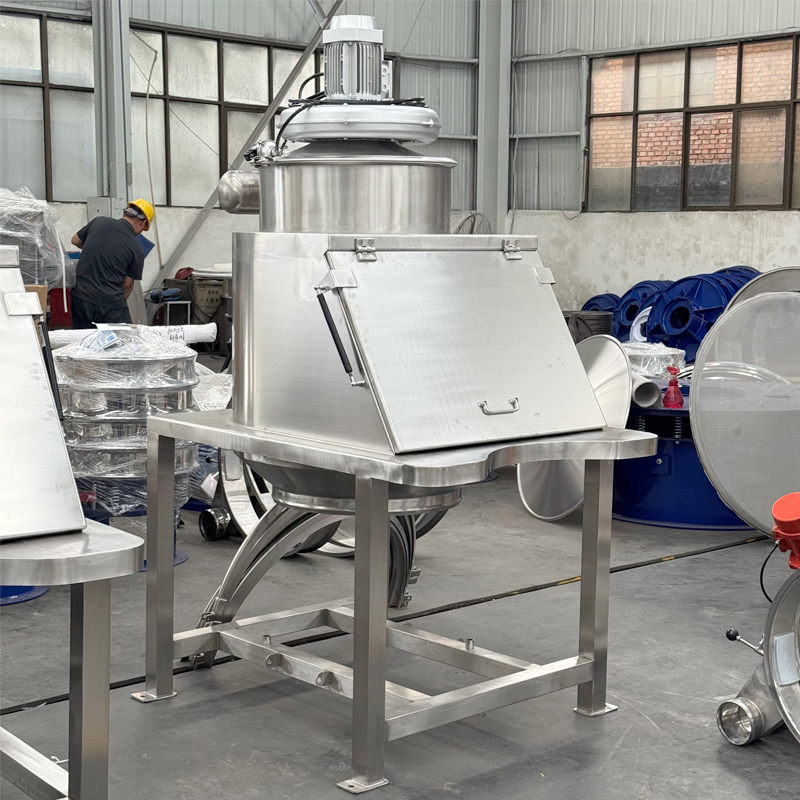

Product display
