| उत्पत्ति के प्लेस: | चीन |
|---|---|
| ब्रांड नाम: | EVERSUN |
| प्रमाणन: | ISO,CE |
| मॉडल संख्या: | एड्स |
| न्यूनतम आदेश मात्रा: | 1 सेट |
| मूल्य: | विनिमय योग्य |
| पैकेजिंग विवरण: | मानक निर्यात लकड़ी के मामले |
| प्रसव के समय: | 7-15 कार्य दिवसों के भीतर |
| भुगतान शर्तें: | एल/सी, डी/ए, डी/पी, टी/टी/टी, मनीग्राम, वेस्टर्न यूनियन |
| आपूर्ति की क्षमता: | 5000set/वर्ष |
| संवाद दूरी: | अनुकूलित | संरक्षा विशेषताएं: | धूल नियंत्रण तंत्र |
|---|---|---|---|
| अनुकूलन विकल्प: | उपलब्ध | फ़ायदा: | स्वचालन उच्च स्तर |
| आयाम: | अनुकूलित | वंचित प्रणाली: | हाँ |
| कस्टमज़ाइड सेवा: | सहायता | आवेदन: | थोक सामग्री हैंडलिंग, खाद्य प्रसंस्करण, रासायनिक प्रसंस्करण |
| सामग्री: | स्टेनलेस स्टील | मुख्य विशेषता: | धूल संग्रह में लाओ |
| विशेषता: | धूल रहित | प्रयोग: | छोटे बैग का निर्वहन |
| सुरक्षा तंत्र: | हाँ |
Product description

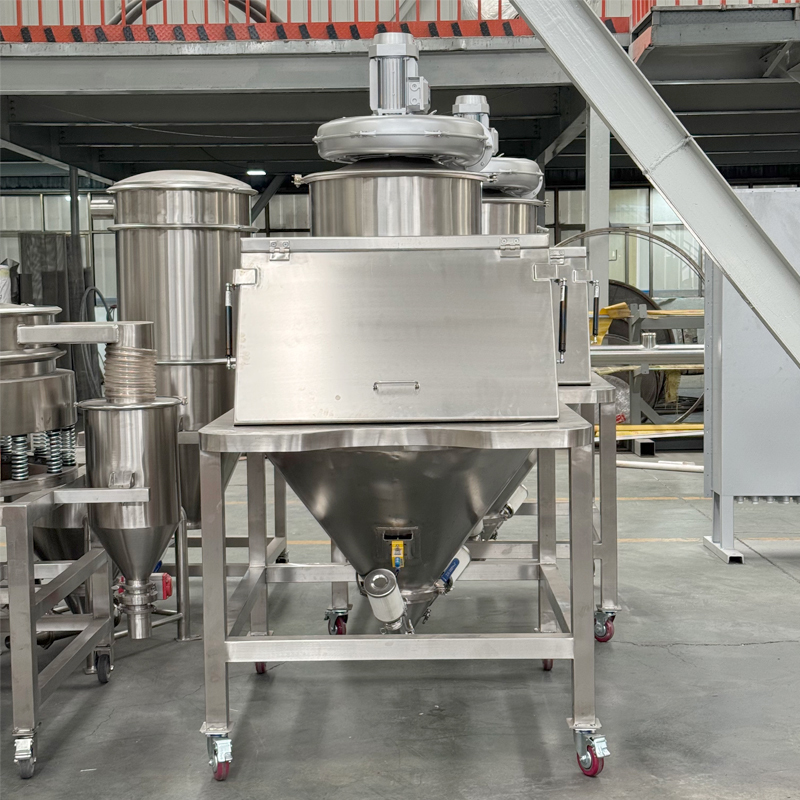

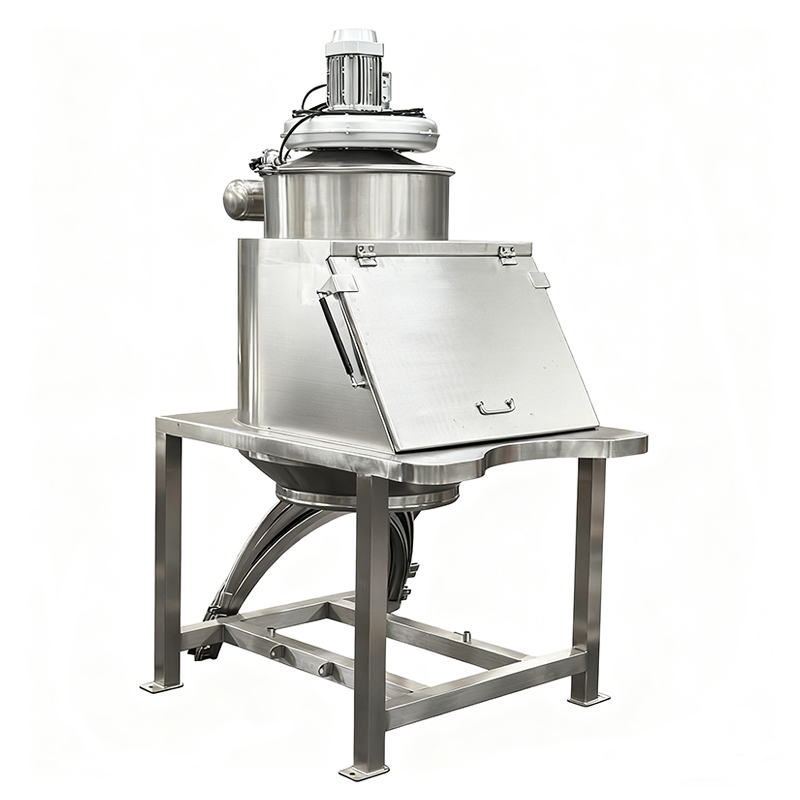

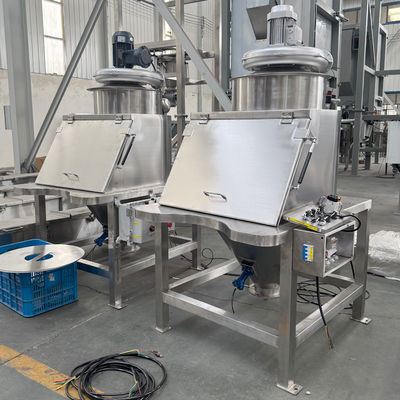

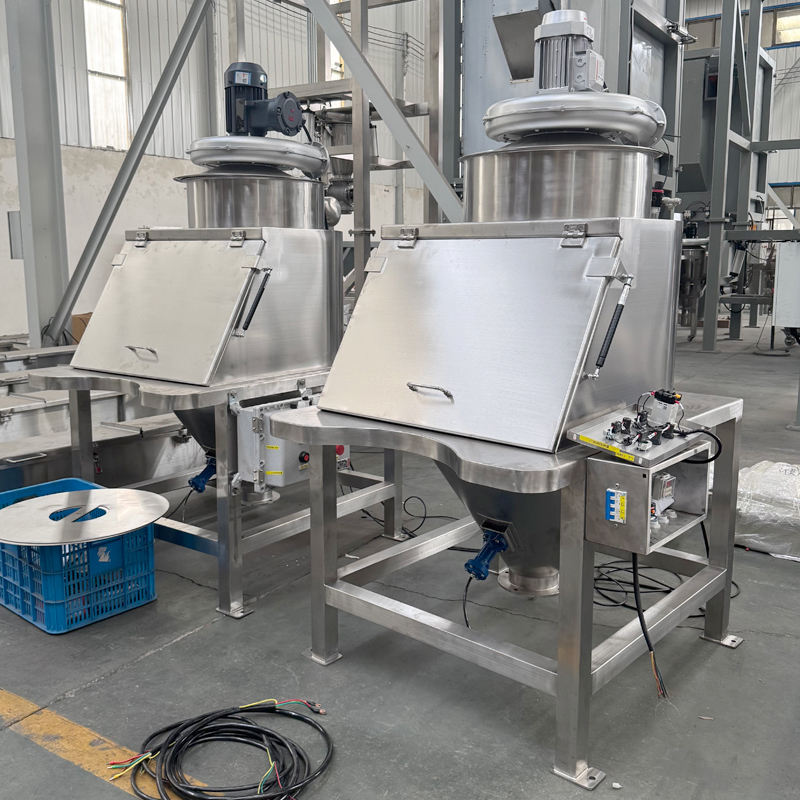

The dust-free feeding station is a specialized equipment for feeding powdery and granular materials. Its core function is to prevent dust from escaping during the feeding process. It is suitable for various materials such as flour and chemical powders, and can be linked with conveying equipment. It can avoid polluting the workshop environment, improve the feeding efficiency and production cleanliness, and is widely used in industries such as food, medicine, and chemical that have clean requirements for the production environment.
Working principle
1. When materials are being fed in, the equipment uses an internal negative pressure device to create a local negative pressure environment, firmly controlling the dust generated during the feeding process within the sealed feeding bin, preventing it from escaping outward;
2. The dusty airflow is sucked into the filtration system by negative pressure, and the dust particles are intercepted and adsorbed by the filter screen, achieving gas-solid separation;
3. The filtered clean air is discharged through the equipment's outlet or recycled back to the workshop, completing dust collection and air purification, ensuring that the feeding process is dust-free.
Features & Benefits
1. High cleanliness: Strictly control dust dispersion to avoid contamination and cross-contamination, meeting the clean standards of multiple industries;
2. Strong adaptability: Can handle various powder/particle materials, can be linked with conveying equipment, and is easy to operate;
3. Convenient maintenance: Low energy consumption, filter components are easy to clean and replace, simple structure, and convenient for maintenance;
4. Cost reduction and efficiency improvement: Eliminates the need for manual dust removal, reduces material loss, and shortens the feeding cycle.
Product parameter
| Model | Feeding port diameter | Power of blower | Air pressure of blower |
| EDS-600 | 600mm/24inch | 1.5KW | 3Kpa-25m³/m |
| EDS-800 | 800mm/32inch | 1.5KW | 3Kpa-25m³/m |
| EDS-1000 | 1000mm/40inch | 2.2KW | 3.6Kpa-39m³/m |
| EDS-1200 | 1200mm/48inch | 2.2KW |
3.6Kpa-39m³/m |
Production line diagram
1. Workers feed powder into the dumping station
2. Vacuum conveyor transfer the powder to the mixer
3. Starting mixing
