Vibratory Screening Machine

Product description

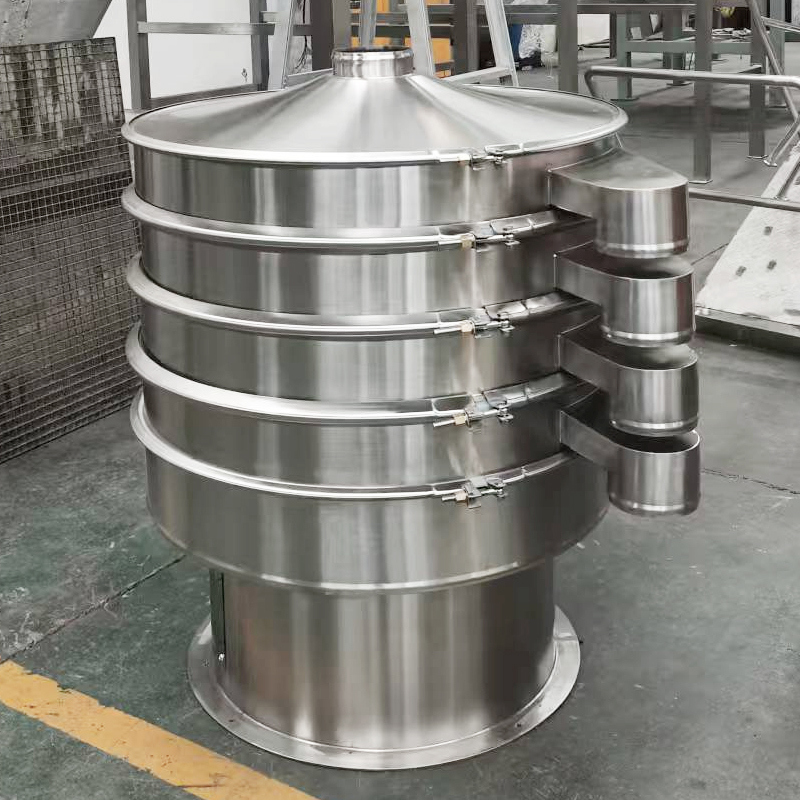

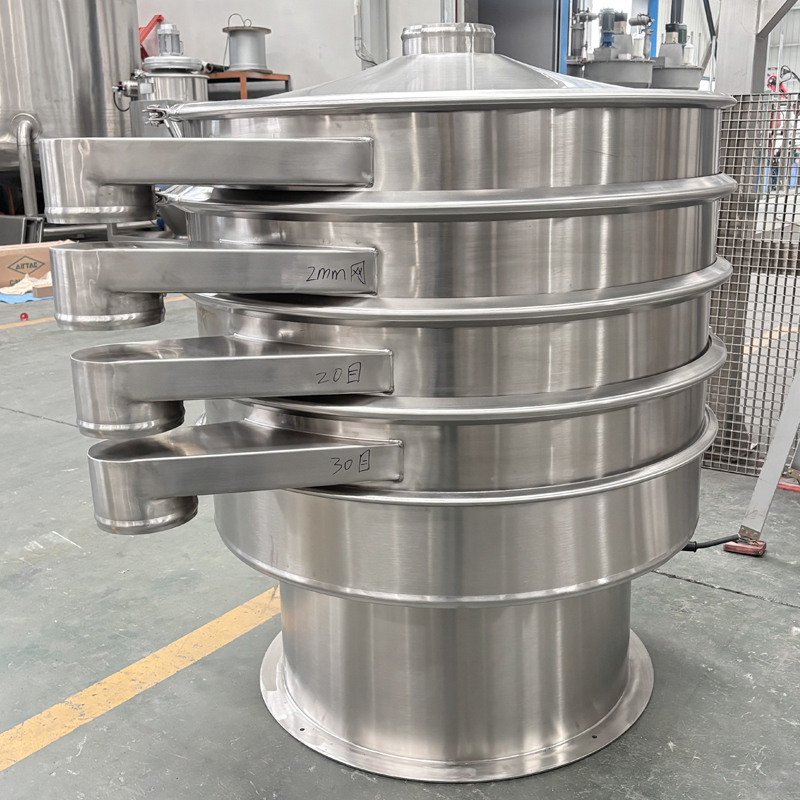

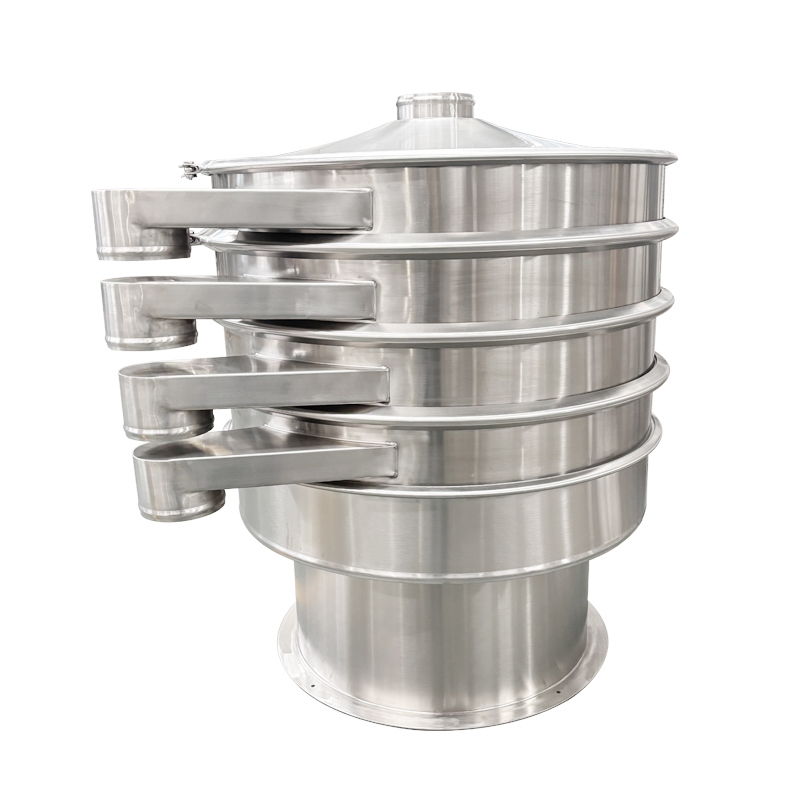

The rotary vibrating screen is a commonly used fine screening equipment that can perform material classification, impurity removal and filtration operations. It can be equipped with different shapes of screen meshes and can also enhance processing efficiency by stacking multiple layers of screens. It is suitable for various forms of materials such as particles, powders, and slurries.
Its application scope is extensive, and it is used in various industries such as food, chemical engineering, and mining. Moreover, its overall structure is compact, and the daily operation and maintenance are quite convenient.

Working principle
The rotary vibrating screen achieves separation through the combined vibration generated by a specific structure. The equipment is powered by an electric motor, which drives the eccentric block to rotate, thereby generating multi-dimensional vibration forces.
This vibration force acts on the sieve body, causing the materials on the sieve screen to perform a spiral jumping motion. During the movement, the materials with diameters consistent with the sieve screen's aperture will pass through the sieve and fall to the lower layer, while the materials that do not meet the requirements will continue to move along the sieve surface and eventually be discharged through the discharge port, thereby achieving the separation, impurity removal or filtration of the materials.

Features & Benefits

1. Excellent screening effect: The movement pattern of the materials is precise, meeting the requirements of classification and impurity removal;
2. Wide application range: It can handle particles, powders, and slurries, covering multiple industries;
3. Strong flexibility: The screen can be replaced and multiple layers can be stacked, adapting to different production needs;
4. Convenient operation and maintenance: Compact structure, simple operation, and easy disassembly and assembly of components;
5. Stable operation: Reasonable vibration, few faults, ensuring continuous production.

Product parameter

Production line diagram

1. Vacuum feeding into the mixer, automated, dust-free
2. The mixed materials directly enter the sieve machine for screening
