Ribbon Blender

Product description

The helical ribbon mixer is a cornerstone of modern powder processing lines. Renowned for its powerful mixing capability, it excels at handling challenging materials like sticky, moist, or density-varied blends without dead zones. Its U-shaped trough and precision ribbons ensure high uniformity with minimal residue, facilitating easy cleaning and rapid material changeover. This robust and reliable machine is vital for guaranteeing batch-to-batch consistency and superior end-product quality in industries from pharmaceuticals to food and chemicals.

Working principle

The helical ribbon mixer operates on the principle of forced convective and diffusive mixing. As the dual ribbons rotate, they generate opposing material flows. This creates intense, three-dimensional movement within the vessel—material is simultaneously moved axially throughout the trough and radially sheared and folded. This combination of bulk convection and controlled diffusion ensures that all ingredients are rapidly and homogeneously blended into a uniform product.

Product features

High Mixing Intensity Handles a wide range of materials, including powders, granules, pastes, and blends with large density differences, eliminating dead zones. Superior Homogeneity Achieves a high degree of uniformity in a short mixing time through intense three-dimensional movement, ensuring batch-to-batch consistency. Easy Cleaning & Low Residue The U-shaped trough and precision ribbon design minimize material buildup, allowing for fast cleaning and product changeover. Robust & Reliable Operation Built with a sturdy structure and stable drive, it is designed for continuous duty in demanding environments with minimal downtime. Broad Application Range Serves as a core unit in industries from pharmaceuticals and food to chemicals and batteries for critical mixing operations.

Model	Volume(L)	Motor power (kw)	Spindle speed(r/min)	Primary mixing (kg) M ³	L*W*H(mm)	Weight (kg)
WLDH-0.3	300	3	41	240	2300*680*1060	750
WLDH-0.5	500	5.5	41	400	2900*780*1240	1000
WLDH-1	1000	11	33	800	3200*1000*1400	1800
WLDH-2	2000	15	33	1600	3860*1200*1650	2200
WLDH-3	3000	18.5	33	2400	4320*1300*1900	3200
WLDH-4	4000	22	28	3200	4600*1400*2000	4000
WLDH-5	5000	37	28	4000	4850*1500*2020	4650
WLDH-6	6000	37	22	4800	5400*1560*2200	6280
WLDH-8	8000	45	22	6400	5100*1720*2420	8500
WLDH-10	10000	55	19	8000	5610*1750*2360	9300
WLDH-15	15000	90	17	12000	5820*2000*3160	11000
WLDH-20	20000	110	11	16000	6060*2630*3160	13500

Product details

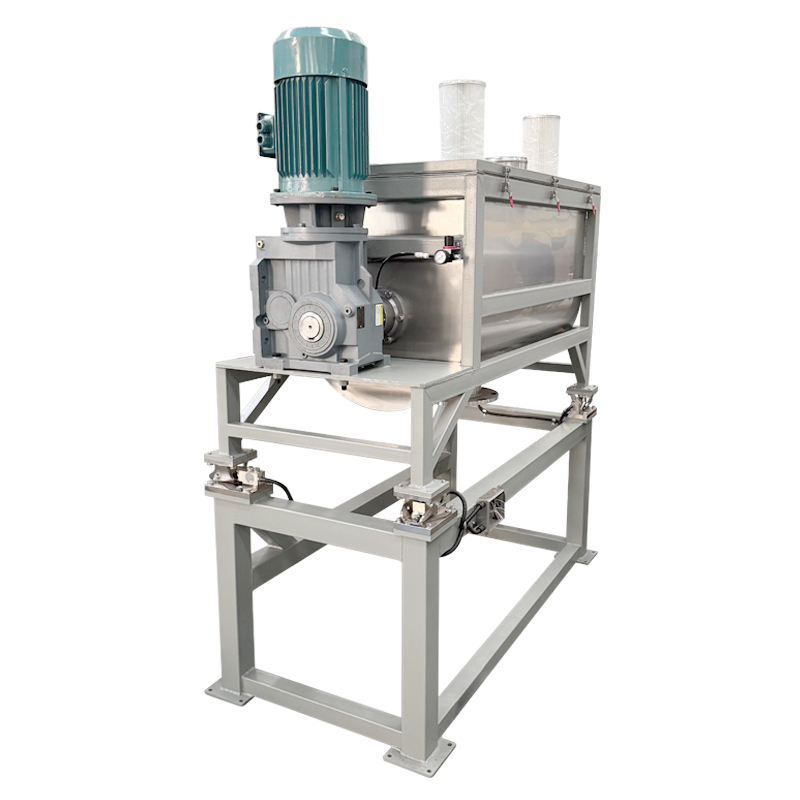

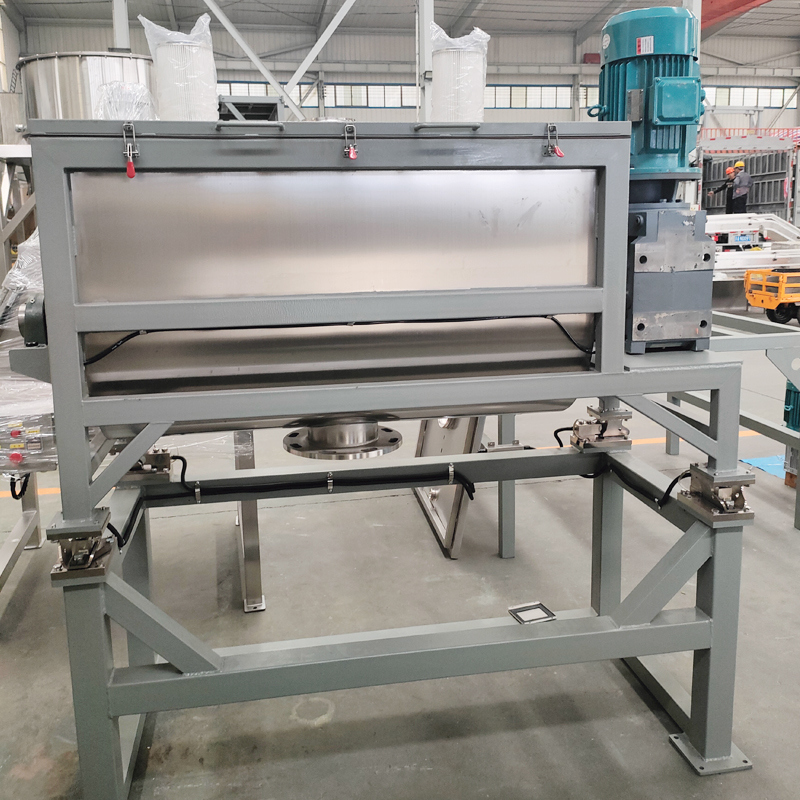

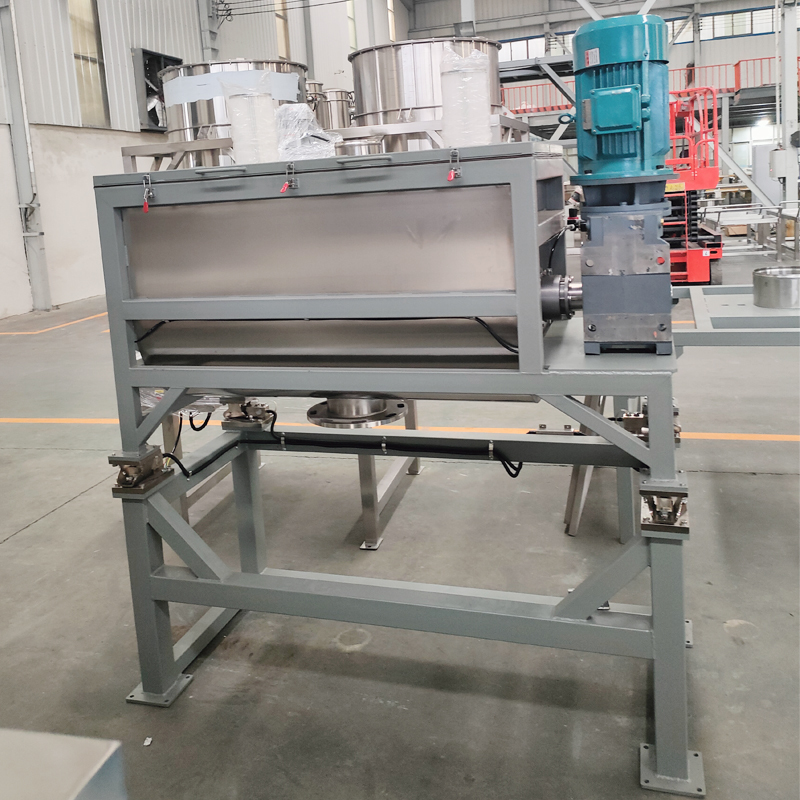

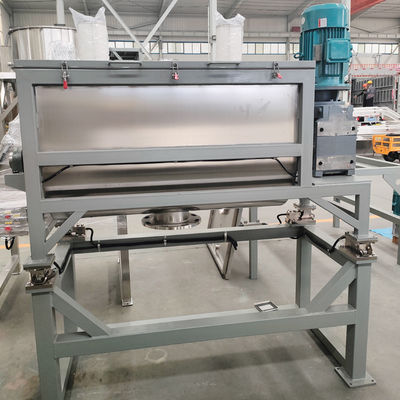

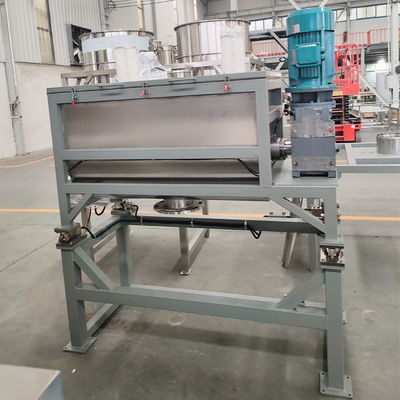

Product shows

Product application

Mixing with a screw ribbon mixer not only takes a short time but also has good mixing results, and it is a highly practical mixing device. is usually used for mixing powders with powders or powders with liquids, so it is widely used in the pharmaceutical, food, pesticide, dye, chemical and plastic industries.
