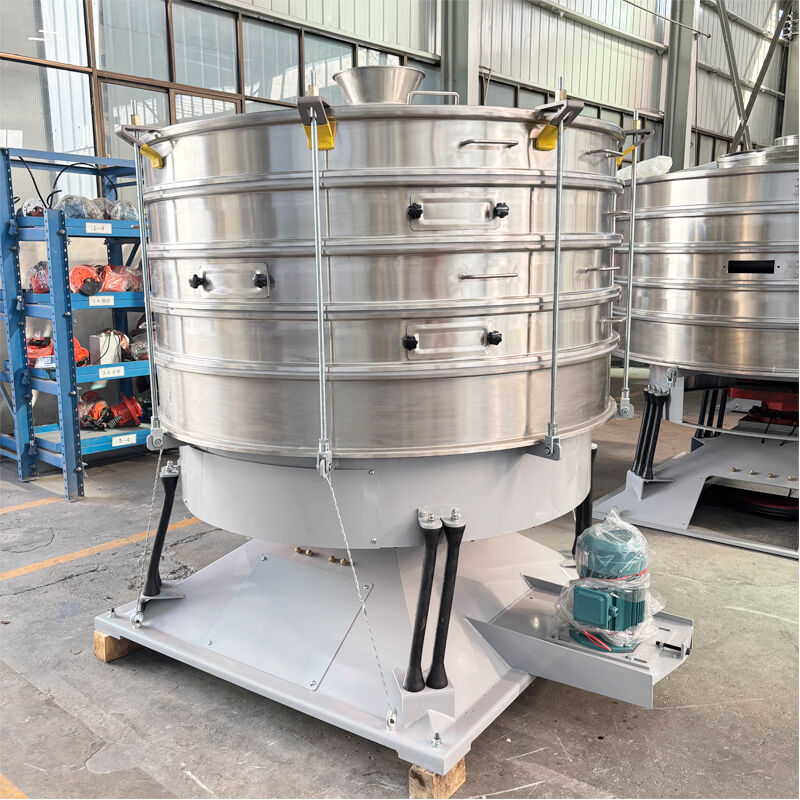

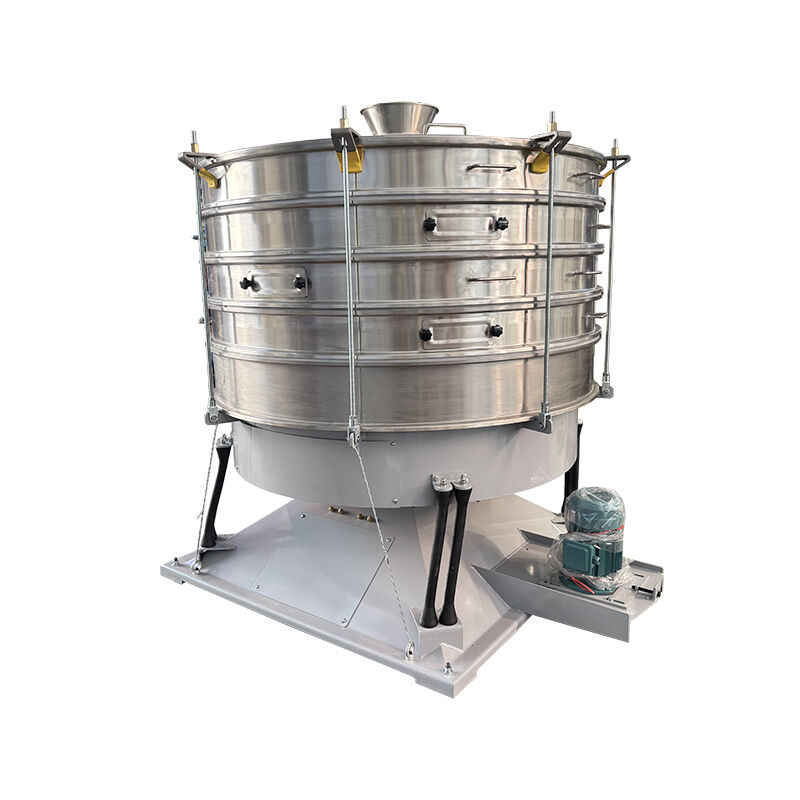

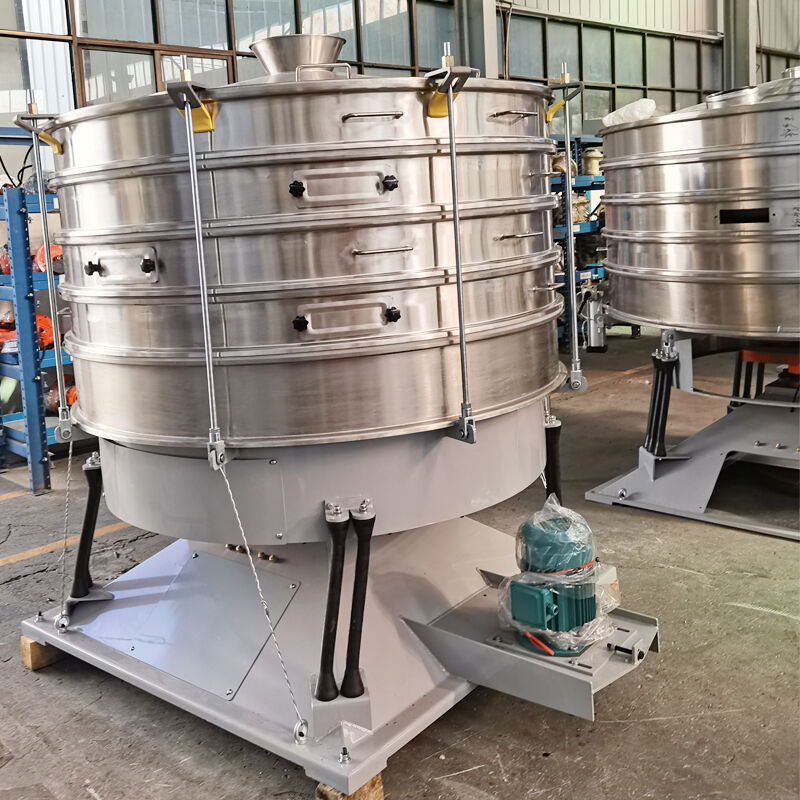

High-yield stainless steel food-grade tumbler sieve grain separator

Product Introduction

The swing screen, also known as the swing screening machine, is a uniquely structured screening device. It is characterized by a gentle rotary and swinging motion, effectively simulating the traditional manual screening action. This design is particularly suitable for processes that require precise screening, high output, and gentle handling of materials. It operates smoothly with low noise and can effectively reduce dust flying. With its compact and sturdy structure and high screening efficiency, this equipment has been widely applied in various industries.

Working principle

The core driving device of the equipment generates a nearly horizontal rotary oscillating motion. This motion is transmitted to the sieve body, causing the sieve surface to trace a circular-like path, but mainly within the horizontal plane.

The materials on the screen are pushed by this gentle and continuous oscillation, spreading out and moving forward in a spiral pattern along the screen surface. During this process, the fine particles smaller than the sieve holes pass through the screen under the combined effect of gravity and centrifugal force, thus achieving classification; while the coarse particles larger than the sieve holes are transported to the discharge port at the edge of the screen and discharged.

The entire process is smooth and gentle. The material spends a longer time on the screening surface and experiences less tumbling. Therefore, it is particularly suitable for the screening of materials that require protection of particle morphology or are prone to generating static electricity or agglomeration.

Product Features

1.The screening efficiency is high.
The processing capacity is large and the screening accuracy is good.
2. Smooth operation
With minimal vibration and low noise.
3. Protecting the materials
Move gently to prevent the particles from breaking.
4. Anti-clogging net
It has self-cleaning properties, reducing clogging.
5. Highly versatile
The parameters can be adjusted, and it is suitable for various materials.
6. Compact and durable structure
Sturdy and reliable, with easy maintenance.
7. Excellent environmental performance
The fully enclosed design prevents dust from spilling out.

Chemicals, food and spices, plastics, mining, pharmaceuticals, woodworking and plywood, metallurgy, rubber, feed, fertilizer, sugar and industries, etc.

Packing and shipping

1. Package:

Choose a wooden box with sturdy packaging materials to provide adequate protection and support.

2. Logo and documentation:

Clearly mark the name, model, weight, size and quantity of the equipment on the packaging.
3. Prepare necessary shipping documents and certificates, such as invoices, packing lists, transportation contracts and insurance certificates, etc.
4. Shipping method:

Choose the appropriate shipping method, such as sea, air or land, making your choice based on destination and time requirements.

Why choose us

About us





FAQ

Q1: What particle size ranges is the Electric Tumbler Sieve suitable for?
A: Electric Tumbler Sieve is suitable for a wide range of particle sizes, from micron-level fine particles to millimeter-level coarse particles, and can be screened and classified.

Q2: What is the screening accuracy of the electric swing screen?
A: The screening accuracy of the electric swing screen depends on factors such as screen hole size, material properties and screening parameters. Normally, it can achieve high screening accuracy and can meet the screening requirements of different particle sizes.
Q3: What are the advantages of Electric Tumbler Sieve compared with other types of screening equipment?
A: Compared with other types of screening equipment, Electric Tumbler Sieves have higher screening accuracy, screening efficiency and flexibility.
